Technical Data

Flow Capacity:                 Standard    Cv 0.0100
Quick Exhaust      Cv 0.0137

Operating Pressure:        Vacuum to 100 PSIG (6.9 Bar) Operating Temperature:   23° F to 120° F (*5° C to 50° C) Fluid Temperature:                    32° F to 120° F (0° C to 50° C) Voltage:                                          12 and 24 VDC
Power:                              1.2 Watt (1.35*Watt w/LED) Response Time:               < .010 Seconds
Filtration:                           10 m (Micron) recommended

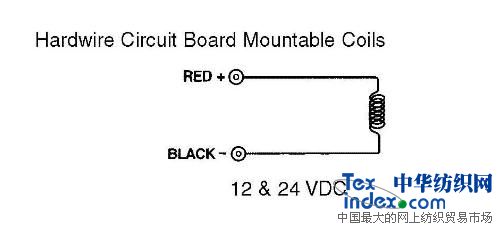

Wire Gauge:                     #24 AWG Teflon Insulated lead wires
Seal Material:                    Viton
Service:                            Recommended for use with dry air, lubricated air, vacuum, non*corrosive, non*
toxic, non*flammable dry gases.
Consult factory for other service applications.
