长期供应KV-168D/D-11气动子弹头定型机_纺机,服装机械

所属类型：	纺机,服装机械
产品代码：	KV-168D/D-11气动子弹头定型机
产品品牌：
产品系列：

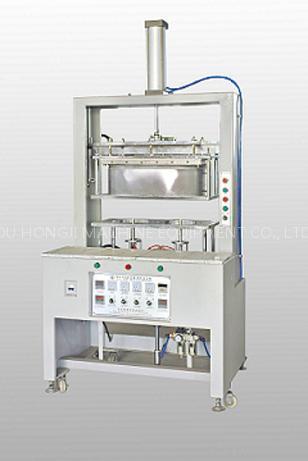

KV-168D/D-11 气动子弹头定型机

KV-168D/D-11 Fabric Cup Molding Machine

用途：该机适用于各种布料，子弹头模具的热压定型。

特点：

(1) 子弹头可根据客户对产品的不同需求随意更换。

(2) 操作方便，省时，成型一致。

(3) 按钮双手操作，确保生产安全。

(4) 本公司针对内衣模杯生产开发的特有温度控制系统，运用可控硅移相触发电流控制加热，可使发热更均匀、平稳、省电，节能效果佳，并可延长发热管使用寿命。

技术参数：

电源/功率：220V/4.4KW

电热片规格：Φ12×250mm×500W-220V Φ16×150mm×700W-220V

模台尺寸：700mm×330mm

可装最大模具：Φ 215

机台尺寸：1000mm×670mm×2100mm

适用物料：文胸、服装等面料

适用模具：文胸布杯模具（子弹头模具）

重量：650KG

Function: This kind of machine is suitable for various fabrics and the bullet head moulds.

Features:

(1) The bullet head can be replaced freely according to the different requirements.

(2) It is easy to operate and it is of time-saving and consistent molding.

(3) The buttons are controlled by both hands, ensuring the production safety.

(4) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.

Technical parameter:

(1) Power supply/power: 220V/4.4KW

(2) Specification of the electro-thermal piece:

Φ12×250mm×500W-220V; Φ 16×150mm×700W-220V

(3) Dimension of the mould table: 700mm×330mm

(4) Max-diameter of the moulds: Φ 215

(5) Dimension of the machine: 1000mm×670mm×2100mm

(6) Applicable material: fabric for bra and other garments.

(7) Applicable moulds: moulds for fabric cups (bullet head moulds)

(8) Weight: 650KG
