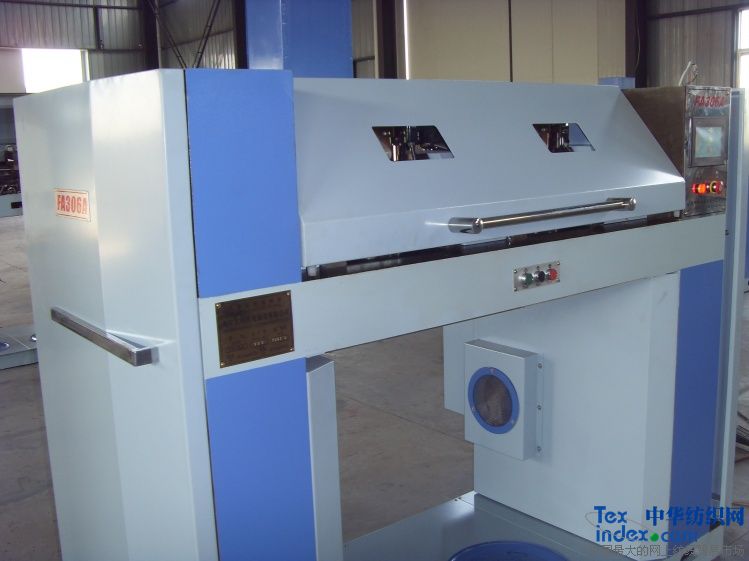

FA306A并条机介绍

The new type by FA306A Drawframe is a new genteration drawframe designed on the basis of the advanced technology of the same products at home and abroad. The curvilinear drafting system of 3 over 3 with pressure bar is suitable for cotton, cotton type fiber and midier and their blends of 22-76mm. All kinds of silvers processed by this machine can be highly quality after the last passage. The gear box of driiving system is in fully-enclosed oil bath. Rocking the handle of the drive changing gear in the headstock can adjust draft range, Which is convenient and reliable. The new construction for spring loading is adopted to improve stability and reliability. The new construction design of sliver creel is adopted to be nice in appearance and convenient in operation. The electric system is controlled by PLC to facilitate maintenance and improve reliabiliy of the controlling system. Inverter and operator’s interface panel is optional to make operation easier. The stable and reliable automatic can change device greatly reduces labor intensity.



新款FA306A型并条机是为了吸收国内外同类产品的先进技术并结合国内外棉纺工艺特点设计的新一代并条机，采用三上三峡压力棒加导向上罗拉双区线牵伸机构，适用于20-76mm的棉、棉型化纤及中长纤维的纯纺与混纺，各纺纱品种末并条干均能获得高质量的棉条。传动采用全封闭油浴齿轮箱，重量变换齿轮装于车头箱内，摇动手柄即可调整重量变换和牵伸倍数，方便可靠。前压辊增设多档变位装置，适纺多种纤维。要架加压采用新型结构，弹簧选料合理，压力不需要调节，提高了加压的稳定性和可靠性。采用全新结构的导条架设计，双臂支撑传动平稳。本机为适应不同纺纱需要，可对各处张力进行调节；电气采用PLC机控制提高控制系统的可靠性，选用变频率速及触摸屏技术，实现人机对话，操作更方便。配有稳定可靠的自动换筒装置，设有定向停车装置、缺预备筒检测和送筒到位检测装置，大大降低了劳动强度。





Specifications

Suitable fiber length: 22-76 mm    No. Of deliveries: 2

Delivery speed:2.47-10m/s(200-600m/min)

Drfing typoe: 3 over 3with presure bar and top guide roller

Total drafting: 4.013-13.556

Loading type: pendulum arm spring loading or optional

       Pneumatic pressure device

Cleaner type: revolving cloth wiping top roller for upper cleaning; Single apron traverse wiping roller for bottom cleaning. Fly is sucked into hopper through suction inlet.

No. Of feeding ends: 4-8

Can size (mm): Feeding can dia. 400 500 600 800 900 1000 , height :110

             Delovery can dia. 300 350 400 500 , height: 110, 900

Feeding type: Wing overhanging tye, Postive feeding

Can change type: indiviual motor drives chain and push rod. Feeding empty can while pushing out full can.

Motor:Main motor: 38V 3.5/;0.8KW 4P/16P

  Suction fan motor: 380V 0.75KW

  Can change motor: 380V 0.25KW 910r/min

Mode of drive: Enclosed drive, high speedgears in oil-batch, improted bearing adopted

Brake: Elecrolytic capacitor brake(non-inverter), or inverter brake

Auto stop motion: photoelectric stop motion, micro switch stop motion

Overll dimension of the machine: 2020*800*1795mm

Weight: Apprx. 2150 (net)

主要技术规格

适纺纤维长度：276mm 眼数：2

输出速度：2.47-10 m/s（200-600m/min）

牵伸方式：三上三下压力棒加导向上罗拉双区曲线牵伸。

纵牵伸倍数： 40.13-13.556倍

加压型式： 摇架弹簧加压或选用气动加压装置。

清洁方式：上清洁采用回转绒布揩拭上罗拉，下清洁为单皮圈揩拭罗拉，花衣经 吸风口吸入棉箱。

喂入根数： 4-8根

条筒规格：（mm）

喂入直径

400 500 600 800 900 1000 高1100

输出直径 300 350 400 500 高1100、900

喂入方式：高架积极喂入

换筒方式：单独机电带动链条推杆，推出满筒同时喂入空筒。

电机： 主电机 380V 3.5/0.8KW 4P/16P

       吸风电机 380V 0.75KW

       换筒电机 380V 0.25KW 910r/min

传动方式： 封闭式传动，高速齿轮油浴，采用进口轴承。

制动：采用电解电容刹车（非变频）或变频制动（变频）。

自停型式：光电自停，微动开关自停。

自己外型尺寸： 2020*800*1795（mm）

重量：约2150kg （净重）
