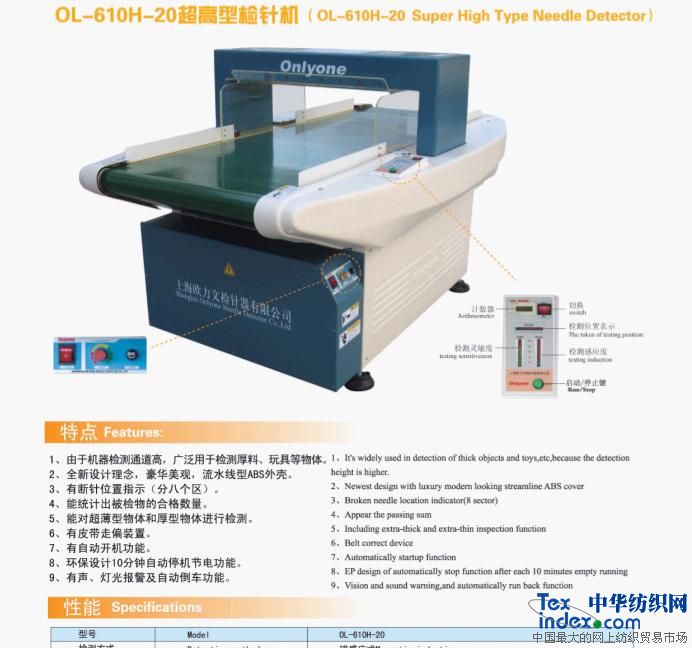

OL-610H-20超高型检针机(OL-610H-20 Super High Type Needle Detector) 特点: 1.由于机器检测通道高,广泛用于厚料,玩具等物体。 2.全新设计理念,豪华美观,流水线型ABS外壳。 3.有断针位置指示(分八个区)。 4.能统计出被检物的合格数量。 5.能对超薄型物体和厚型物体进型检测。 6.皮带走偏装置。 7.有自动开机功能。 8.环保设计有10钟自动停机节电功能。 9.有声,灯光报警及自动倒车功能。 性能: 型号 | Model | OL-610H-20 | 检测方式 | Detecting method | 磁感应式Magnetic induction | 检测高度 | Detecting height | 210mm | 检测宽度 | Detecting width | 600mm | 检测能力 | Detecting ability | φ1.5mm铁球φ1.5mm ironball | 灵敏度调节 | Detecting abjustment | 1-10无限 1-10 stepless adjustment | 报警方式 | Alarm method | 声,光,停止输送 Buzzer LEDdisplay and the belt stops | 输送带速度 | Belt speed | 约30m/min (appr.)30m/min | 电源 | Power supply | 220V/50HZ | 消耗功率 | Rated output | 约120W(appr.)120W | 外型尺寸 | Dimension | 1650mm(1) ×1050mm(w) ×1000mm(h)mm | 重量 | Weight | 约200kg(appr.)200kg |
 |
