长期供应海棉贴合机_纺机,服装机械

所属类型：	纺机,服装机械
产品代码：	TH-120C 贴合机
产品品牌：
产品系列：

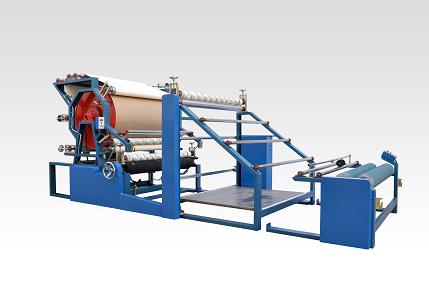

TH-120C 贴合机

TH-120C Laminating Machine

用途：泡棉、布类、PVC、EVA、上胶贴合。制鞋、制帽、手套、手提包、皮衣、沙发、汽车坐垫等原料的上胶贴合。

特点：

(1) 整机设计注重强化性能的稳定和安全检制；

(2) 根据布料和胶水的不同要求，量身定做各种规格的硬烙上胶轮，有效提高贴合品质、减少胶水的损耗；

(3) 硬烙上胶轮采用耐高温钢带，压布过程进布均匀；

(4) 采用汽缸取代弹簧压轮，提高机械整体速度；

技术参数：

(1) 电源/功率：380V/35KW

(2) 动力：3HP+2HP

(3) 加热滚筒规格：Φ1200mm×1830mm

(4) 工作宽度：1700mm

(5) 工作速度：0~30码/分钟

(6) 主机尺寸：7800mm×2600mm×2400mm

(7) 重量：2200KG

Function: This machine is used for the glue lamination of foam, fabrics, PVC, EVA as well as the materials for making shoes, hats, gloves, handbags, leather garments, sofa, seat cushions of the car and etc.

Features:

(1) The design of the complete machine emphasizes on the stable performance and secure supervision.

(2) According to the request of the cloth and the glue, a variety of specification chromium rollers are made by measurement, which improved the lamination quality effectively and decreased the glue consumption.

(3) It adopts the steel belt of high temperature resistance on hard chromium roller and the process of pressing cloth proceeds evenly.

(4) Replacing the spring pressing roller with the cylinder which raises the whole speed.

Technical parameter:

Power supply/power：380V/35KW

Motion: 3HP+2HP

Specification of the heating roller: Φ1200mm×1830mm

Working width: 1700mm

Working speed: 0~30yards/min

Dimension of the machine: 7800mm×2600mm×2400mm

Weight: 2200KG
