用途： 主要用于内衣一件围产品的定型生产。

(1)    该机采用高强度机身设计，结构美观精巧，起落平稳。

(2)    采用弹簧驱动下压框和多达9个红外线探灯定位，调节自如，定位准，成型率高。

(3)    本公司针对内衣模杯生产开发的特有温度控制系统，运用可控硅移相触发电流控制加热，可使发热更均匀、平稳、省电，节能效果佳，并可延长发热管使用寿命。

电源/功率：220V/9KW

电热片规格：Φ 12×280mm×500W-220V

模台尺寸：900mm×280mm(可选装)

机台尺寸：1300mm×815mm×1800mm

适用物料：文胸、服装等面料

适用模具：文胸棉模及定布模具

重量：1000KG

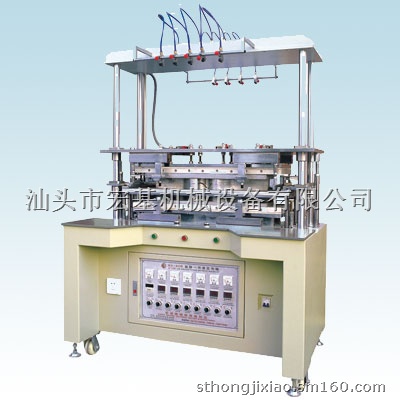

This kind of machine is mainly used for molding one piece bra.

(1) This kind of machine adopts the fuselage design with high strength, which is delicate and exquisite in structure and lifts steadily.

(2) Using the spring-actuated pressing frame and no less than 9 infrared searching lights for positioning, it can adjust freely and bears the features such as high molding rate and good positioning.

(3) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.



Power supply/ power: 220V/9KW

Specification of the electro-thermal pipe: Φ 12×280mm×500W-220V

Dimension of the mould table: 900mm×280mm (selection)

Dimension of the machine: 1300mm×815mm×1800mm

Applicable material: material for bras and other garments

Applicable moulds: moulds for foam cups

Weight: 1000KG
